New Products

Capacitor Charger Power Supply 3000J/S


For Laser Applications
Picture Features Applications
  • Form Factor: 12.7" x 5.7" x 4.1"
  • Ideal for OEM laser applications
  • EN55011 Class A
  • IEC 60601-1 3rd edition and cTUVus approval
  • High efficiency, typically 89%
  • Fast reponse and low noise
  • Load fault protection watchdog timer modifiable upon customer request
  • Full medical insulation
  • Less than 150mA leakage current
  • Innovative QCP Technology
  • Medical (surical) lasers
  • Laser aesthetics systems
  • Flash lamp pumped lasers
  • Pulsed UV curing systems
  • Sterilization systems
  • Other products that require bursts of pulsed energy

Open-Frame 800W PSU


AC-DC 800W in a 4" x 7" (1U enclosure)
Picture Features
  • Wide range temp. -40~+80°C base plate cooling
  • Small footprint- compatible with 1U encolsures
  • Current share operation - built-in Oring diodes
  • High efficiency
  • No minimum load requirements

DC-DC Converter

DCD500, 12VDC to 24VDC, 500W DC-DC converter
Picture Features Applications
  • High efficiency 97%
  • Parallel operating for high power
  • Rugged and reliable
  • Fully sealed IP67
  • 10-20V input voltage range
  • Automotive/RV/military/marine
  • Rugged environments
  • Mobile communication (TV and radio vans)
  • Base-station power
  • Industrial controls
  • Emergency backup power


The Innovative QCP Technology

  • High Power Density
  • Increased power density
  • Smaller size
  • Increased reliability

Product Highlights

Capacitor Charger Power Supply

350-9000W
Picture Features Applications Flyer
  • High efficiency, typically 90%
  • Fast response and low noise
  • Fully isolated input to output, allowing direct connection to an AC line
  • Power factor correction 0.99
  • IEC 60601-1 3rd edition and cTUVus approval
  • EN55O11 Class A, no external filter is needed • Customized voltage and power output up to 1.6KV and 6000W
  • Load fault watchdog timer can be modified upon customer request
  • Medical (surgical) lasers
  • Laser aesthetics systems
  • Flash lamp pumped lasers
  • Pulsed UV curing systems
  • Sterilization systems
  • Other products that deliver bursts of pulsed energy

Compact PCI Power Supply

AC/DC, DC/DC, 300-600W
Picture Features Benefits Flyer
  • 300W 3U AC and DC models
  • 600W 6U AC and DC models
  • Fully compliant with PICMG® 2.11
  • High power density
  • Current share and hot swap operation - buit-in ORing diodes
  • 16ms hold-up time at full load
  • Very high efficiency
  • Meets conducted and radiated emission testing as per
  • EN-55022 class B requirements with an external mains front end filter
  • Remote status monitoring capabilities - I^2C data bus (6U units)
  • "Ultra" wide range DC input models (18-36VDC & 36-72VDC)
  • Ruggedized military-use option
  • Cost effective
  • High output power-leaves "room for future growth"
  • Built-in current sharing and N+1 redundancy
  • Operational in extreme environmental conditions
  • High MTBF

Planar Transformer

1-2200W
Picture Features
  • Planar Design
  • High Efficiency
  • Aggressive Interleave planar construction lowest achievable Leakage Inductance
  • Multilayer PCB optimization for lowest AC resistance and Proximity Effect
  • Custom designs

Ultra Slim AC/DC Power Supply

30-100W
Picture Features
  • 90-300VAC
  • High Efficiency
  • Build in active PFC
  • No load power consumption <0.5W
  • Protections: short circuit / over voltage / over temperature
  • IP67
  • 10mm high

Ultra Slim LED Driver

30-100W
Picture Features
  • 90-300VAC
  • Dimming /Dali
  • Flicker Free
  • Build in active PFC
  • No load power consumption <0.5W
  • Protections: short circuit / over voltage / over temperature
  • IP67
  • 10mm high

Products

Capacitor Charger Power Supply

For Laser Medical Applications
350-9000W
Picture Model Size Pout Vout Input Voltage Input Current Flyer
LCH352-XXX S 350W 300V to 1KV 90-264VAC 3.4 @ 115VAC
LCH402-XXX S 400W 300V to 1KV 90-264VAC 4.5 @ 115VAC
LCH502-XXX S 500W 300V to 1KV 90-264VAC 5 @ 115VAC
LCH602-XXX S 600W 300V to 1KV 90-264VAC 6 @ 115VAC
LCH752-XXX S 750W 300V to 1KV 90-264VAC 7.5 @ 115VAC
LCH802-XXX S 800W 300V to 1KV 90-264VAC 8 @ 115VAC
LCH1002-XXX S 1000W 300V to 1KV 90-264VAC 10 @ 115VAC
LCH500-XXX A 500W 400V to 1KV 90-264VAC 5.2 @ 115VAC
LCH750-XXX A 750W 400V to 1KV 90-264VAC 7.8 @ 115VAC
LCH1000-XXX A 1000W 400V to 1KV 90-264VAC 10.5 @ 115VAC
LCH1250-XXX A 1250W 400V to 1KV 180-264VAC 6.5 @ 220VAC
LCH1500-XXX A 1500W 400V to 1KV 180-264VAC 8.2 @ 220VAC
LCH1510-XXX B 1500W 400V to 1.6KV 90-264VAC 16.1 @ 115VAC
LCH2000-XXX B 2000W 400V to 1.6KV 200-264VAC 11 @ 220VAC
LCH2200-XXX E 3000W 400V to 1.2KV 200-264VAC 16 @ 220VAC
LCH3000-XXX E 3000W 400V to 1.2KV 200-264VAC, 3∅ 10.3 @ 220VAC
LCH4000-XXX E 4000W 400V to 1.2KV 200-264VAC, 3∅ 13.7 @ 220VAC
LCH6000-XXX E 6000W 400V to 1.2KV 200-264VAC, 3∅ 20.6 @ 220VAC
LCH9000-XXX E 9000W 400V to 1.2KV 200-264VAC, 3∅ 30.9 @ 220VAC

Compact PCI Power Supplies

AC/DC, DC/DC, 300W-600W
Product Family Model Advice Part Input V1/11 V2/12 V3/13 V4/14 Max Power Flyer
3U CompactPCI
 CPCI-AC-3U-200 900-3002-01 AC wide range 5V/25A 3.3/35A +12V/3A -12V/0.5A 200W
CPCI-AC-3U-250 900-3002-01xx 48Vdc 5V/25A 3.3/35A +12V/3A -12V/0.5A 250W
CPCI-DC-3U-200 900-3003-01 48Vdc 5V/25A 3.3/35A +12V/3A -12V/0.5A 200W
CPCI-DC-3U-200/24 900-3011-01 24Vdc 5V/25A 3.3/35A +12V/3A -12V/0.5A 200W
CPCI-DC-3U-300/24 900-4011-01 24Vdc 5V/30A 3.3/40A +12V/5A -12V/0.5A 300W
CPCI-AC-3U-300/R 900-4602-0000 Rugged 24Vdc 5V/30A 3.3/40A +12V/5A -12V/0.5A 300W
CPCI-AC-3U-300 900-4002-01 AC wide range 5V/30A 3.3/40A +12V/5A -12V/0.5A 300W
CPCI-DC-3U-300 900-4003-01 48Vdc 5V/30A 3.3/40A +12V/5A -12V/0.5A 300W
CPCI-DC-3U-300/24/R 900-4611-01 Rugged 48Vdc 5V/30A 3.3/40A +12V/5A -12V/0.5A 300W
6U CompactPCI
 CPCI-DC-6U-350/24 900-6001-01 24Vdc 5V/50A 3.3V/60A +12/7A -12V/1.5A 350W
CPCI-AC-6U-400 900-6002-01 AC wide range 5V/50A 3.3V/80A +12/7A -12V/1.5A 400W
CPCI-DC-6U-400 900-6003-01 48Vdc 5V/50A 3.3V/80A +12/7A -12V/0.5A 400W
CPCI-AC-6U-500 900-7002-01 AC wide Range 5V/65A 3.3V/80A +12/12A -12V/1.5A 500W
CPCI-DC-6U-500 900-7003-01 48Vdc 5V/65A 3.3V/80A +12/12A -12V/1.5A 500W
CPCI-AC-6U-600 900-7102-01 AC wide Range 5V/65A 3.3V/80A +12/12A -12V/1.5A 600W
CPCI-DC-6U-600 900-7103-01 48Vdc 5V/65A 3.3V80A +12/12A -12V/1.5A 600W
CPCI-AC-6U-400/R 900-6620-0000 Rugged AC wide Range 5V/50A 3.3V/80A +12/7A -12V/1.5A 400W
CPCI-AC-6U-400/M 900-7602-0000 Military AC wide Range 5V/50A 3.3V/70A +12/7A -12V/1.5A 400W
CPCI-DC-6U-400/24/R 900-6601-0000 Rugged 24Vdc 5V/50A 3.3V/60A +12/7A -12V/1.5A 400W

Open Frame 200W - 800W Power Supply

Picture Features Benefits
  • Highest power density
  • Small footprint - compatible with 1U enclosures
  • Current share operation- built-in Oring diodes
  • High efficiency
  • Meets conducted and radiated emission testing as per EN-55022 class B requirements with external line filter
  • No minimum load requirements
  • Cost effective
  • High output power- leaves "room for future growth"
  • Built in current sharing and N+1 redundancy capabilities
  • Operational in extreme environmental conditions
  • High MTBF

PoE Injectors


Power over Ethernet Injectors, AC/DC and DC/DC
Picture Features Applications
  • Easy installation on wall
  • Compact size- 160x63x32mm
  • High efficiency- free convection cooling
  • Wide-range input voltage covering worldwide requirements for AC and DC input
  • FCC 15 & EN55022 class B
  • Operating temperature range standard -10° to +40°C or extended temperature -40° to +70°C with no derating
  • CE, FCC, CB, UL
  • AC models power saving level VI
  • Power Over Ethernet
  • Fast data modems
  • Wireless modems
  • 1GB systems
  • Video / data / voice modems

Advice Rechargeable Power Bank

Picture Features Applications
  • Easy plug & play implementation
  • Charge up to 4 devices
  • No grid connection required
  • Fast charge rate
  • Compatible with all USB devices
  • Overnight charging of the unit in docking station
  • Quick release
  • Minimum 500 charging cycles 20A/H
  • Universal USB Charger for
    • Coffee shops
    • Restaurants
    • Lounges
    • Conference Centers

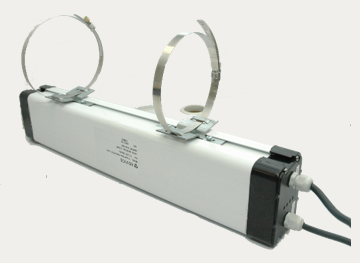

Titanium-Outdoor Backup System

Picture Features Applications
  • 1/3 of the size and weight of all lead acid battery
  • 5 year lifespan without service
  • Fast and easy clip-on pole installation and service
  • 35W-250W 12/24/48vdc
  • Supplies stable DC power 24 hours a day, 7 days a week
  • Highly reliable- no fans or, relays
  • Narrow pole wide profile, blends into the environment
  • Internal lithium battery to feed load when utility/sun is not available
  • MPPT solar charging algorithm for up to 30% more power
  • Outdoor resilient IP65, Built for dusty, rainy, harsh environment
  • Fan-less and filter-less, operates in extreme temperatures -20° to +50°C
  • SMBus, RS485. CANbus communication option
  • Customized per requirement
  • Lithium Based-UPS
  • Street Light-UPS
  • Solar Generators for Surveillance Cameras and Telecom
